Lemania 15CHT 2220 parts

Price range: R140.00 through R4500.00

SKU: LEM-15 Category: Tags: , , , , Brand:

Description

Lemania 15CHT/15TL chronograph parts
15TL – 2 button
15CHT – Single Button
NOS stock but may have slight tarnish/storage marks or black mark (this is a thin gum that will clean up).
sold loose in a plastic zip-lock/blister pack
Apologies for not having a better description of the parts, information for this Lemania is not freely available.
These parts fit 2000,2010,2020,2030,2200,2210,2220

Calibre Ebauche Part No Brand Part No Description Part Specific

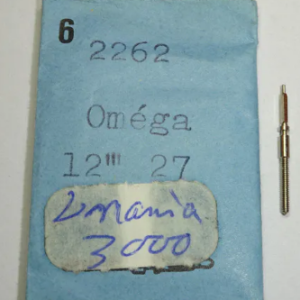

401 4501 Stem ⌀ 0.9mm
401 4501 Stem ⌀ 1.1mm
15CHT 407 4503 Clutch Wheel
15CHT 415 4508 Rachet Wheel
15CHT 434 4510 Clicking Spring (Locking Spring)
15CHT 1111 4511 Yoke, Clutch Lever

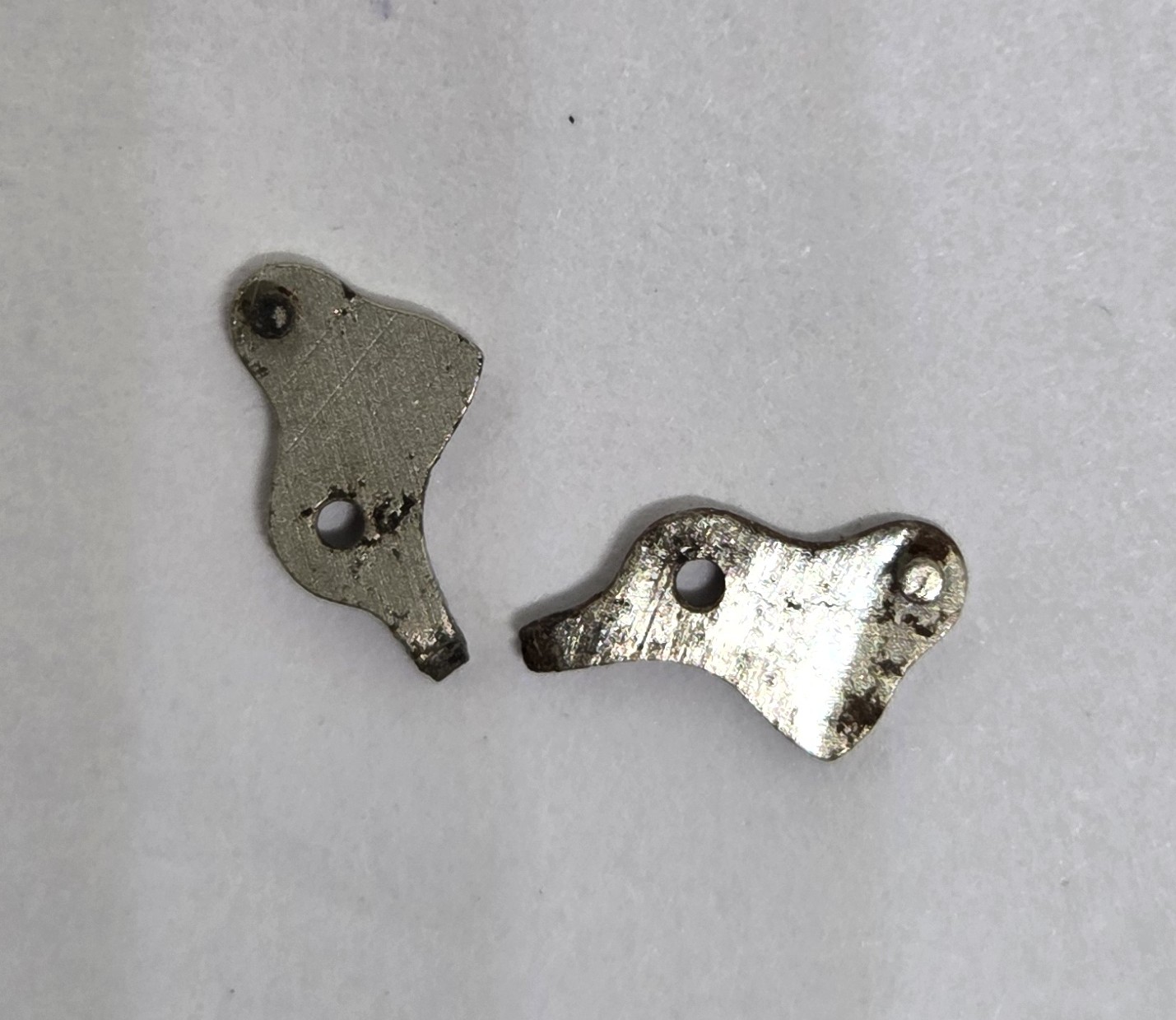

15CHT 443 4513 Setting Lever (Detent)
15CHT 1109 4514 Setting lever
15CHT 201 4518 Center Wheel
15CHT 210 4519 3rd Wheel
15CHT 4520 Seconds Wheel
15CHT 260 4522 Minute Wheel
2220 710 4526 Jewelled Pallet Fork And Staff
15CHT 240 4523 Cannon Pinion
15CHT 710 4526 Jewelled Pallet Fork And Staff
15CHT 714 4528 Pallet Staff
15CHT 721 4539 Balance Complete

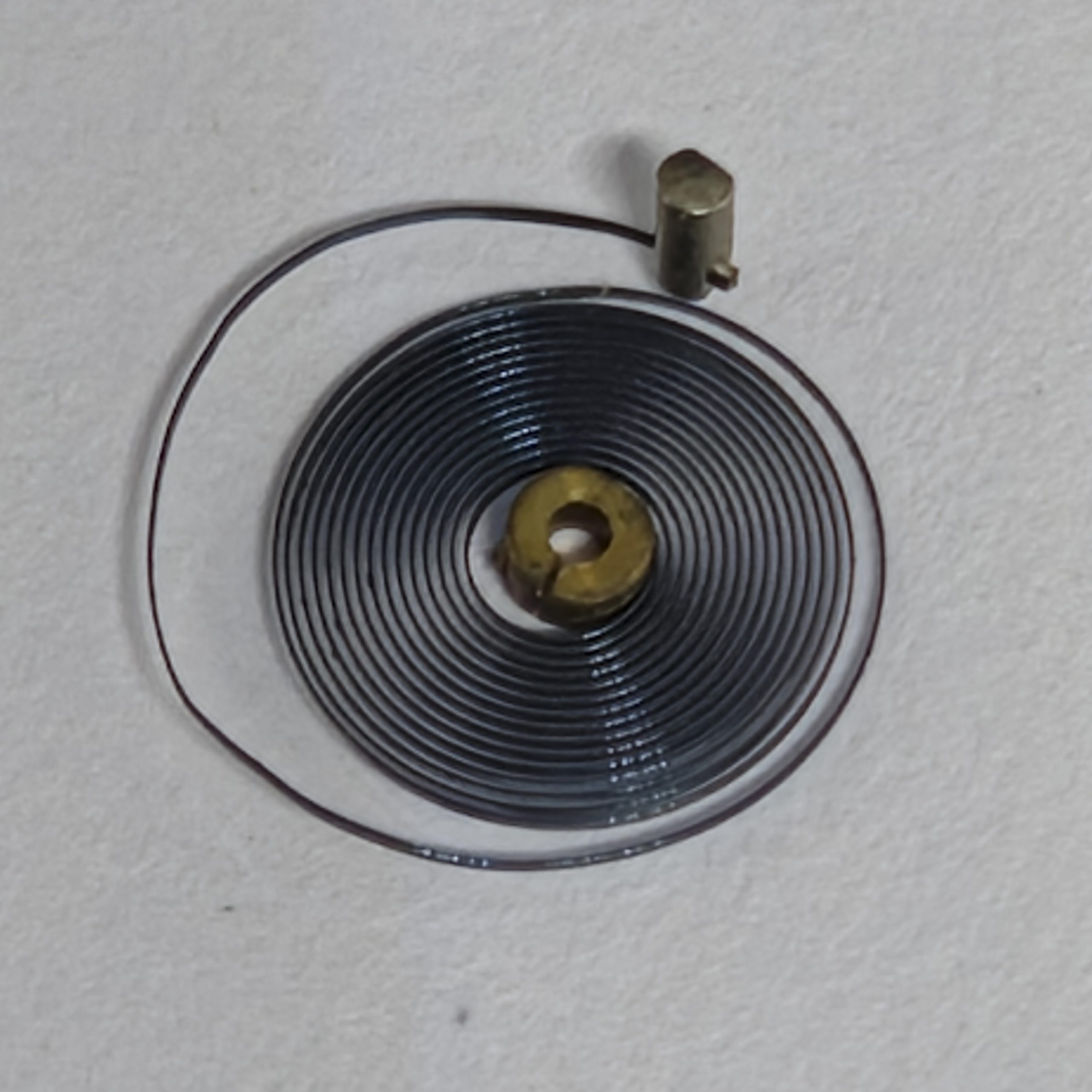

15CHT 4540 Hairspring
15CHT 4542 See picture

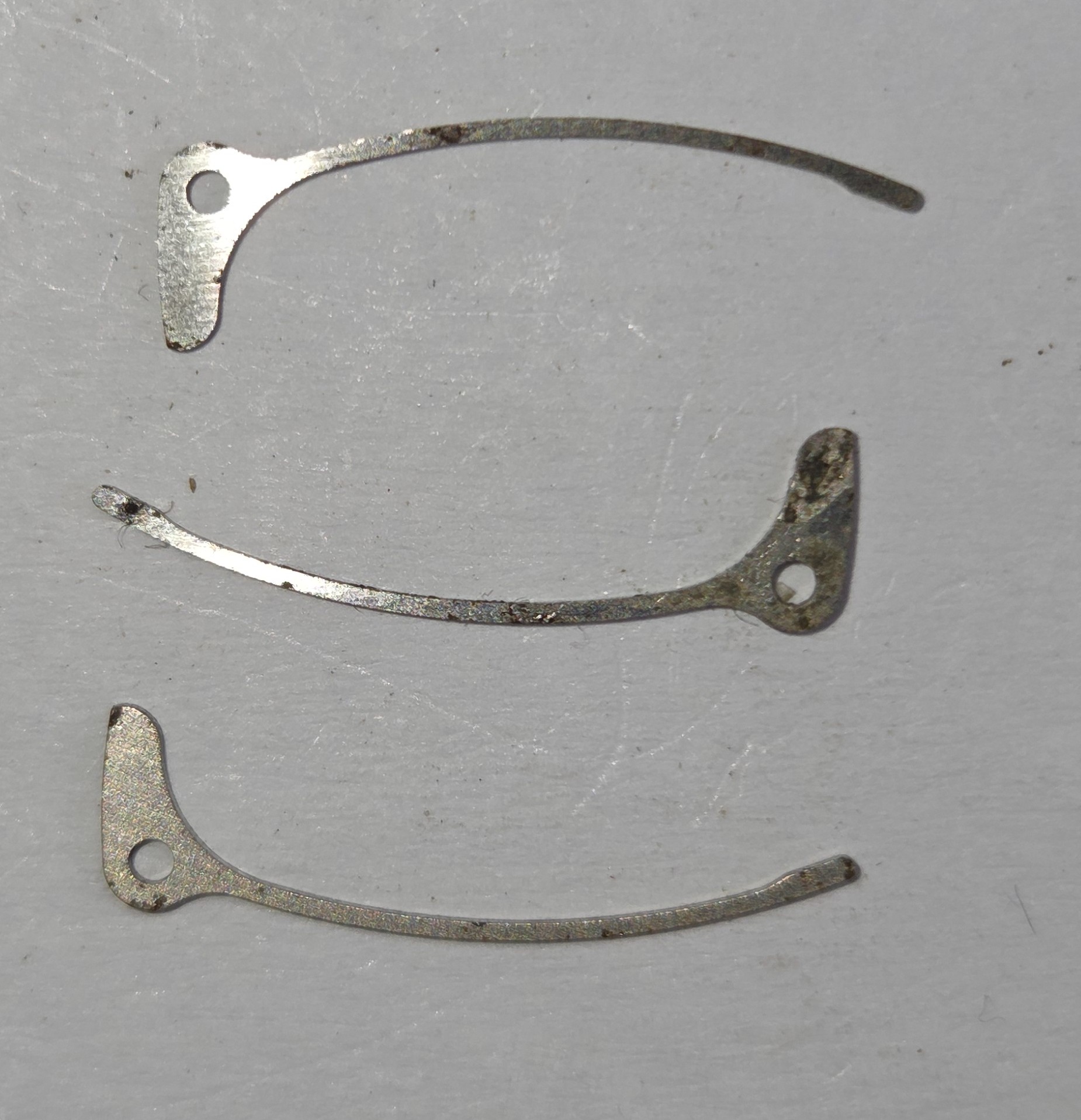

15CHT 4543 See picture

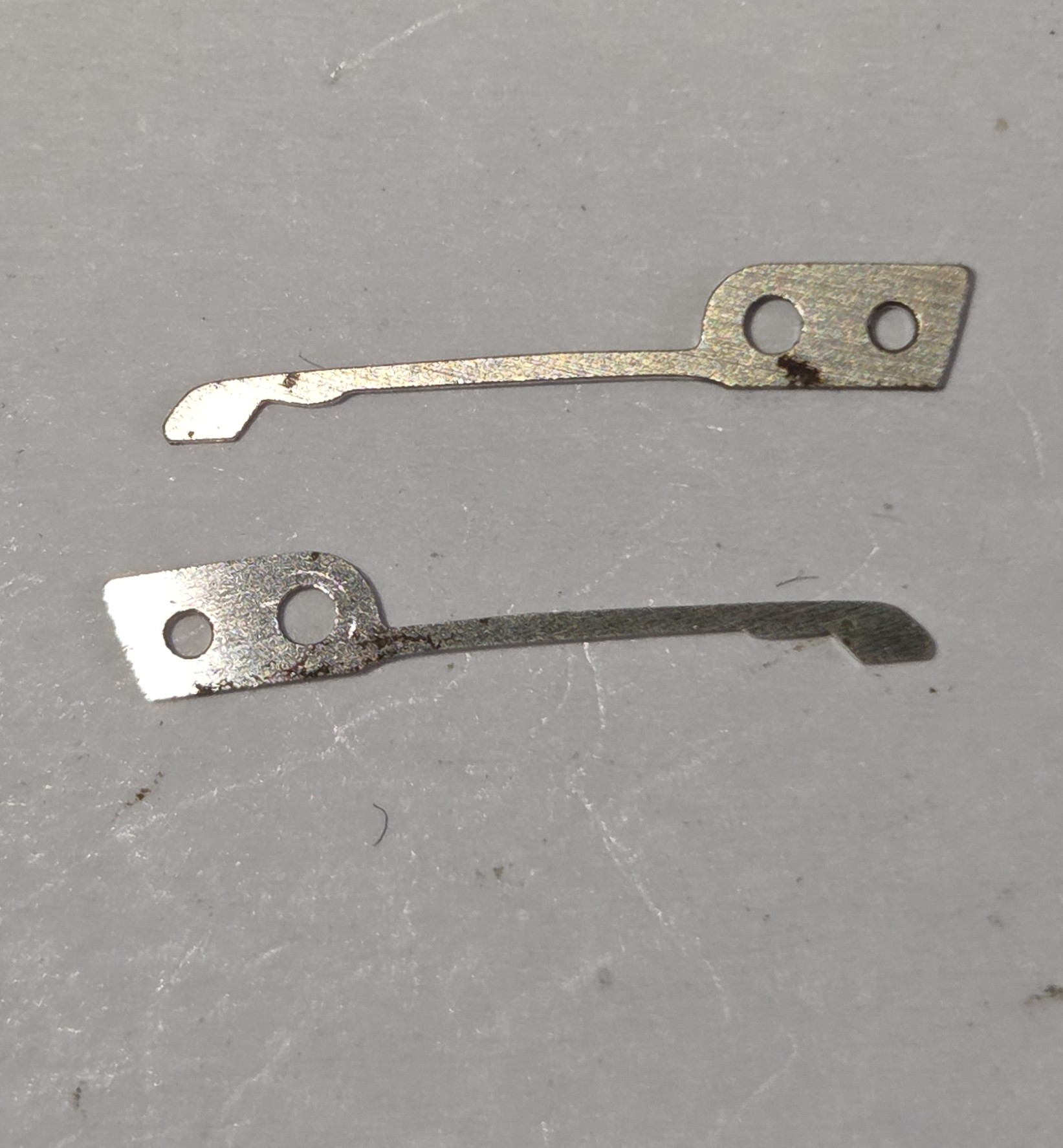

15CHT 4544 See picture
15CHT 4545 Pillar Wheel
15CHT 4548 See picture
15CHT 8219 4549 Hammer

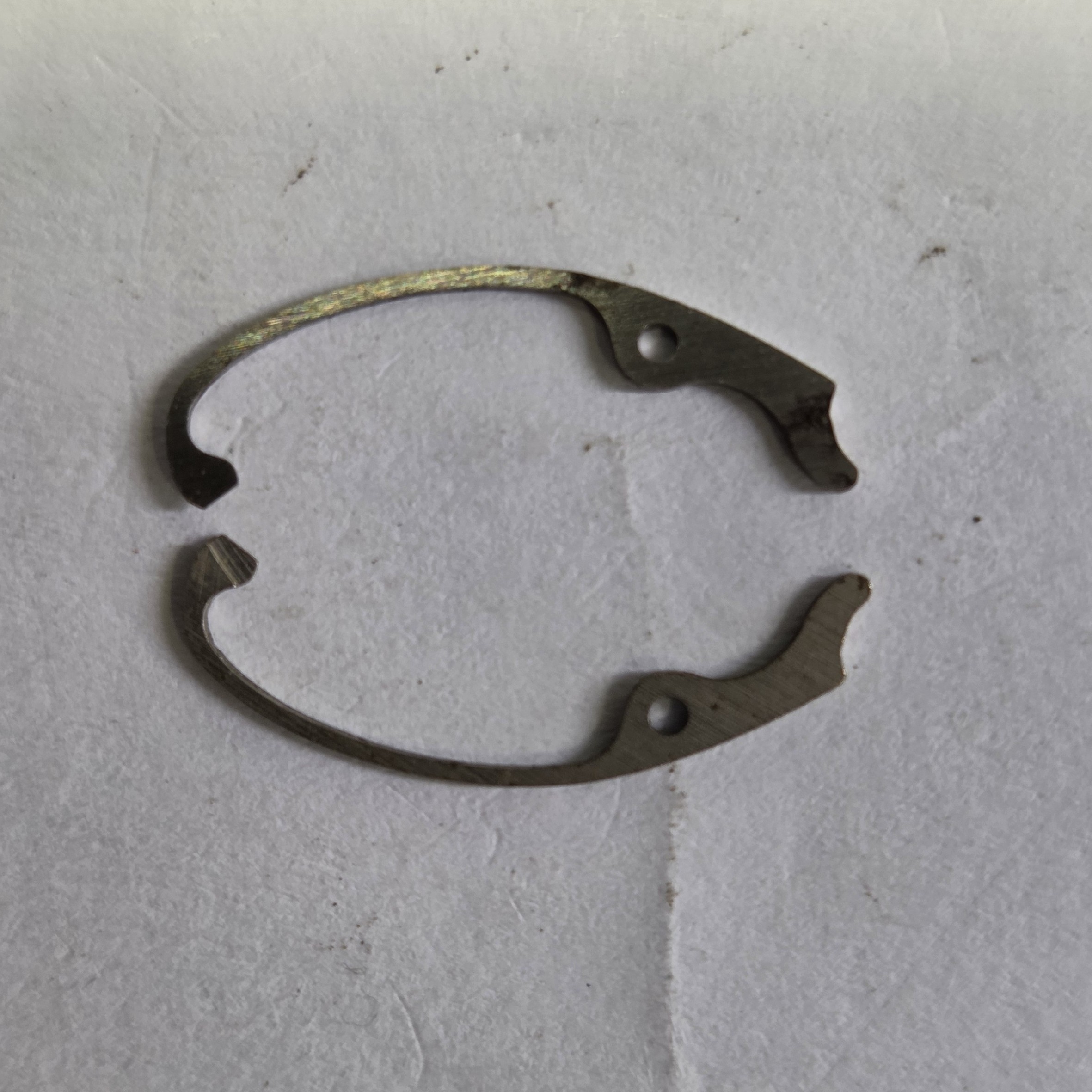

15CHT 4550 See picture
15CHT 4551 See picture
15CHT 8290 4552 Friction Spring for Chronograph Runner

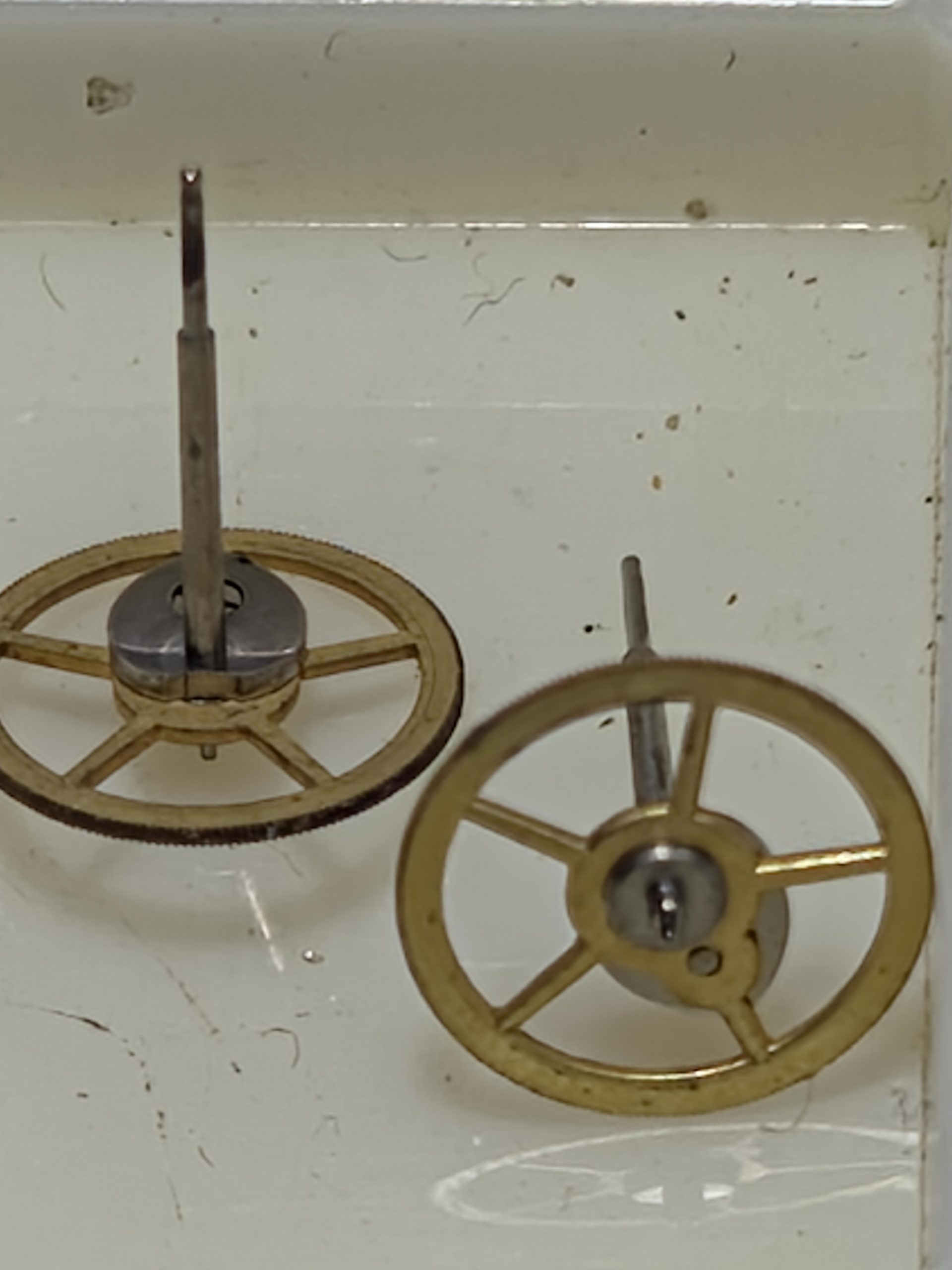

15CHT 8002 4556 Seconds Counter Wheel

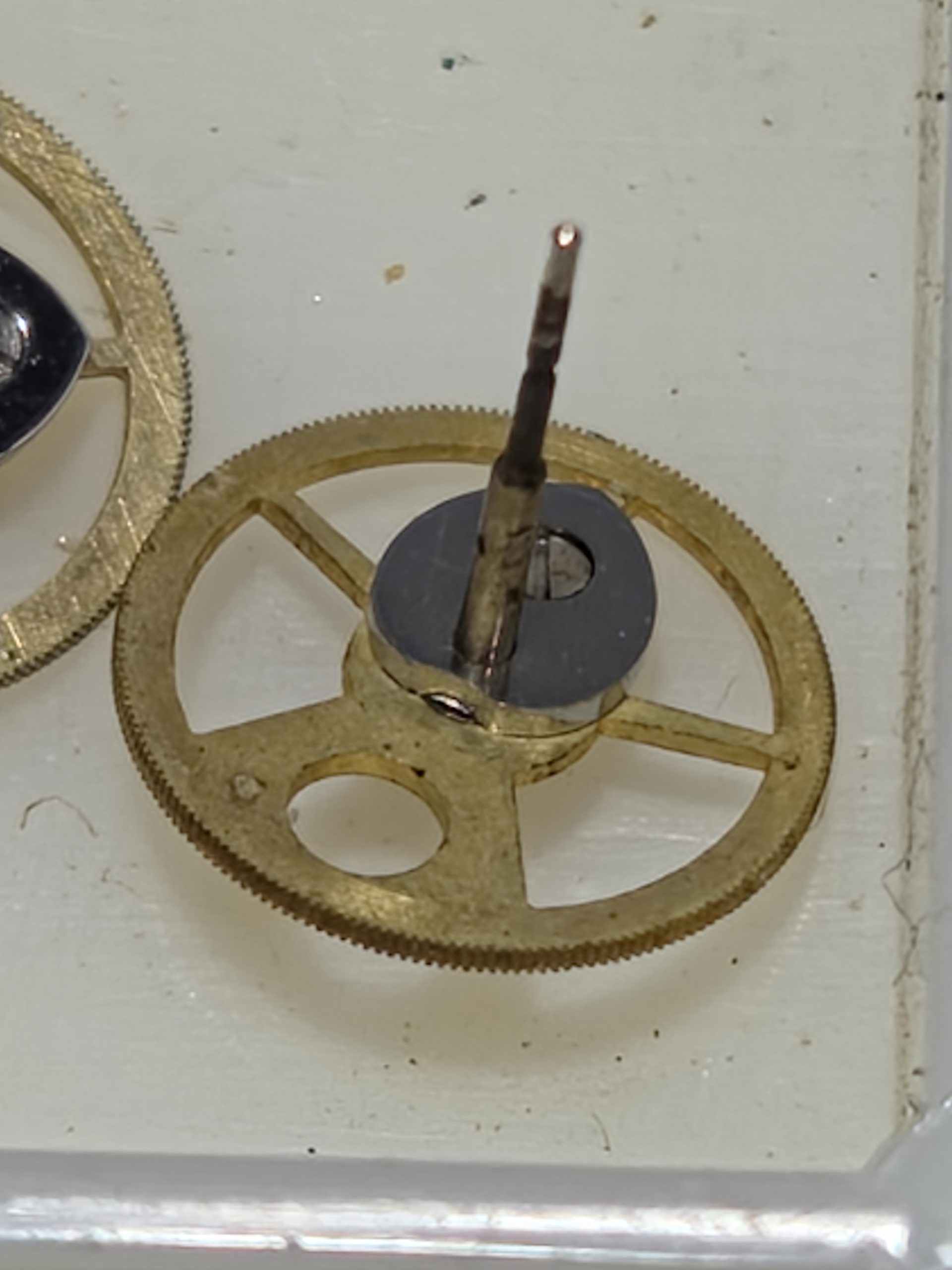

15CHT 4558 Minute Counter Wheel

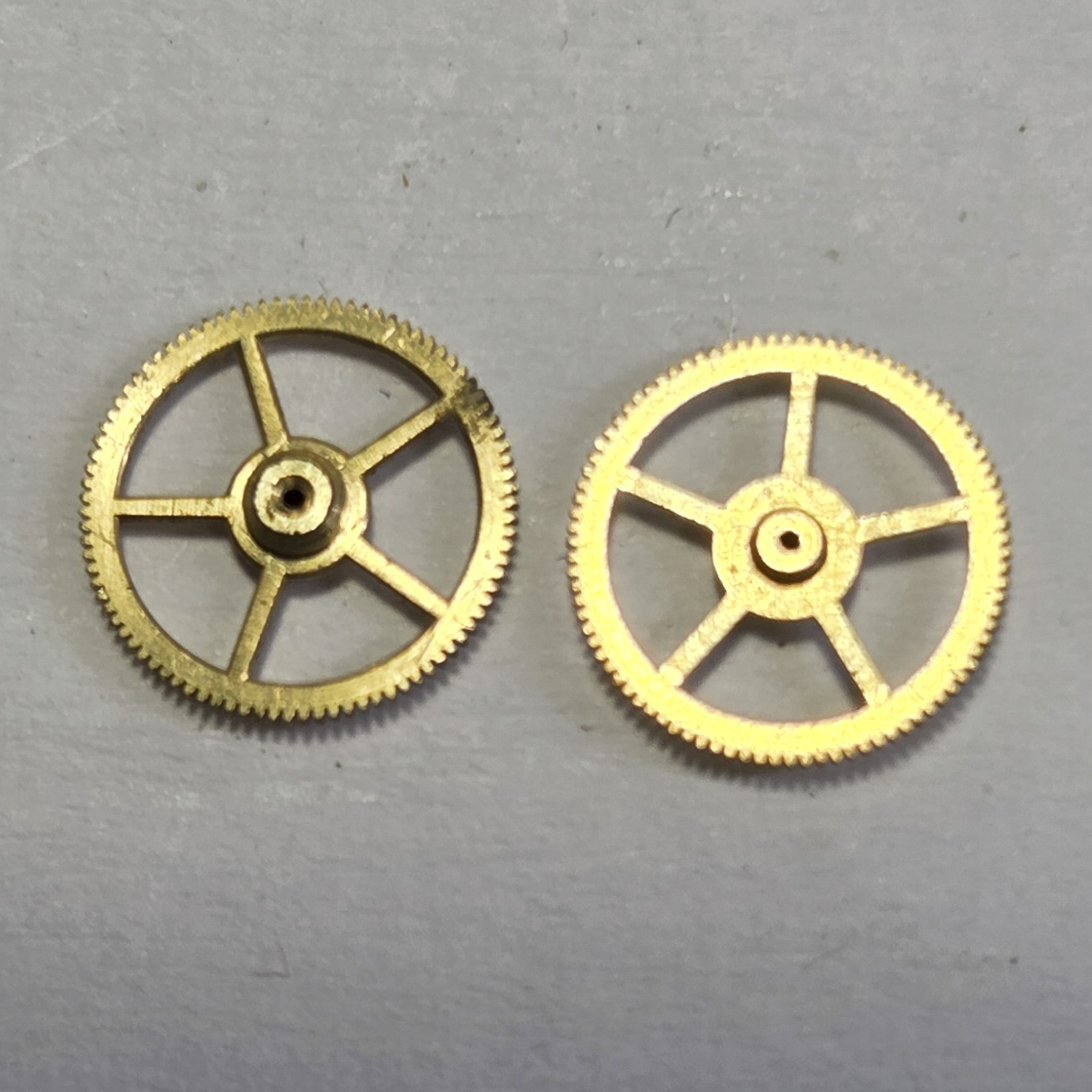

15CHT 8060 4559 driving wheel

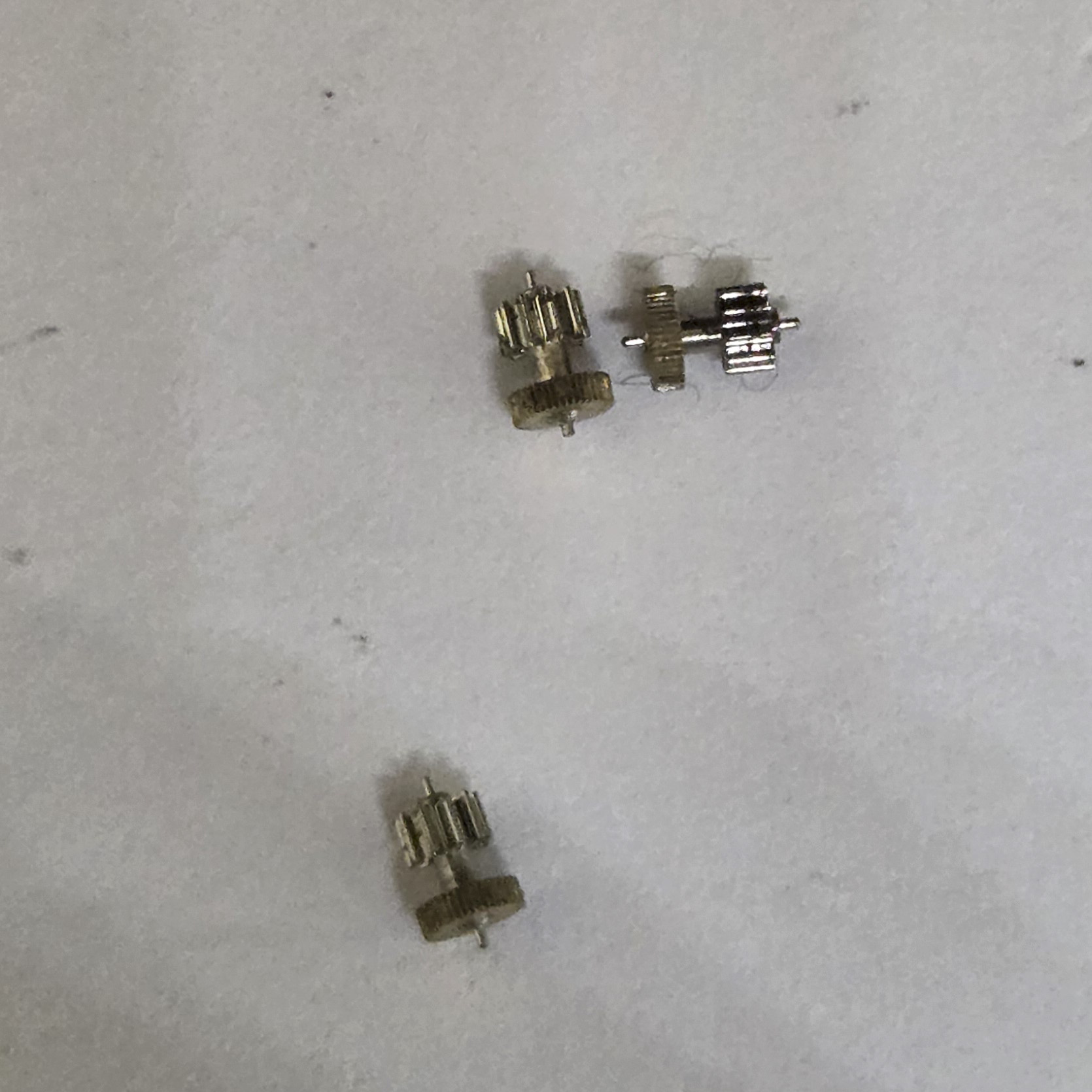

15CHT 4560 Pinion Relay Chronograph wheel
5443 4571 Screw: Setting Lever (Detent)
15CHT 58070 4581 Screw:Pillar Wheel
15TL 5149 Pusher Return Spring Screw
15TL 954 5150 Pusher Stem
8290 4552bis Friction Spring for Chronograph Runner

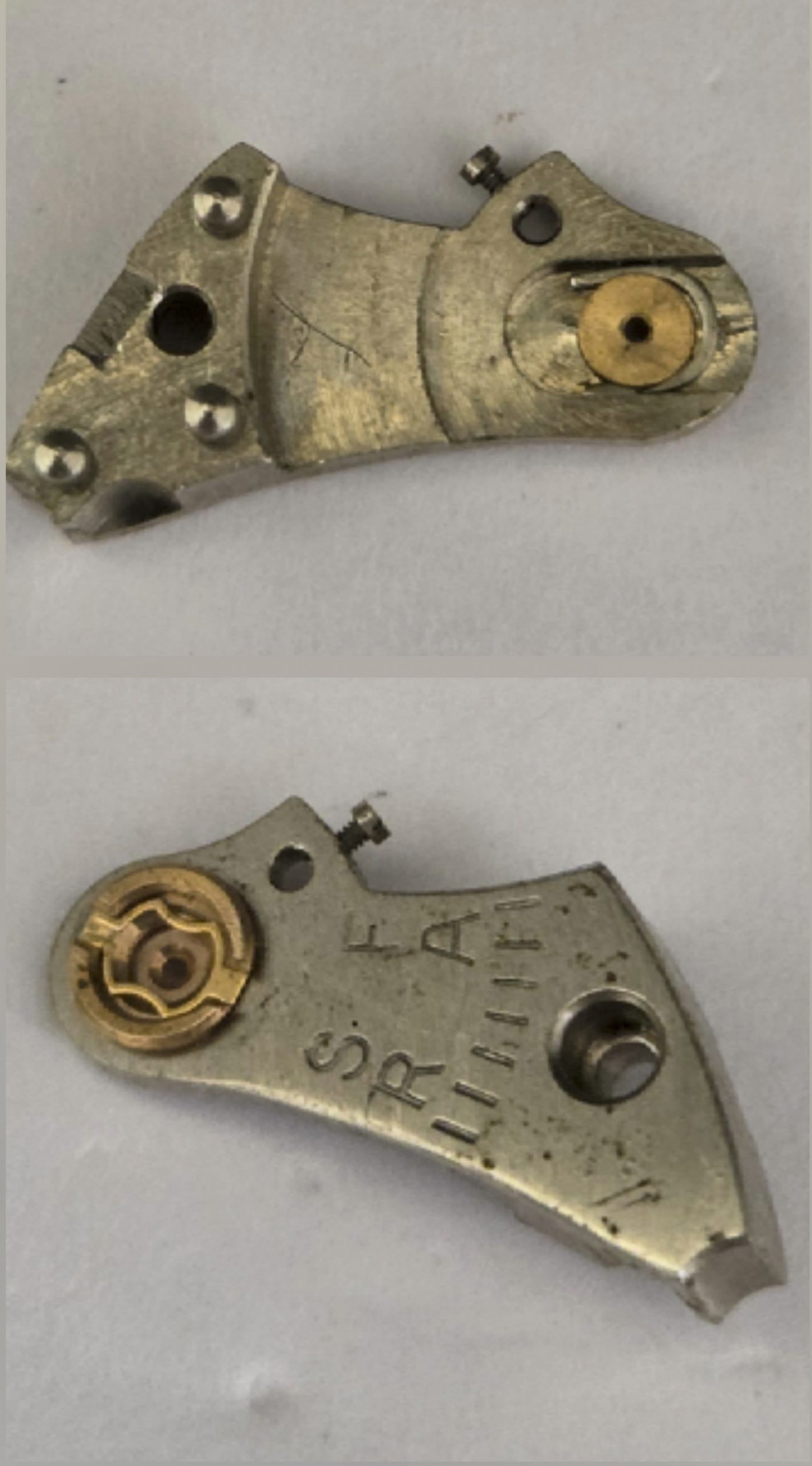

15CHT 121 Balance Bridge
2220 750 Dial

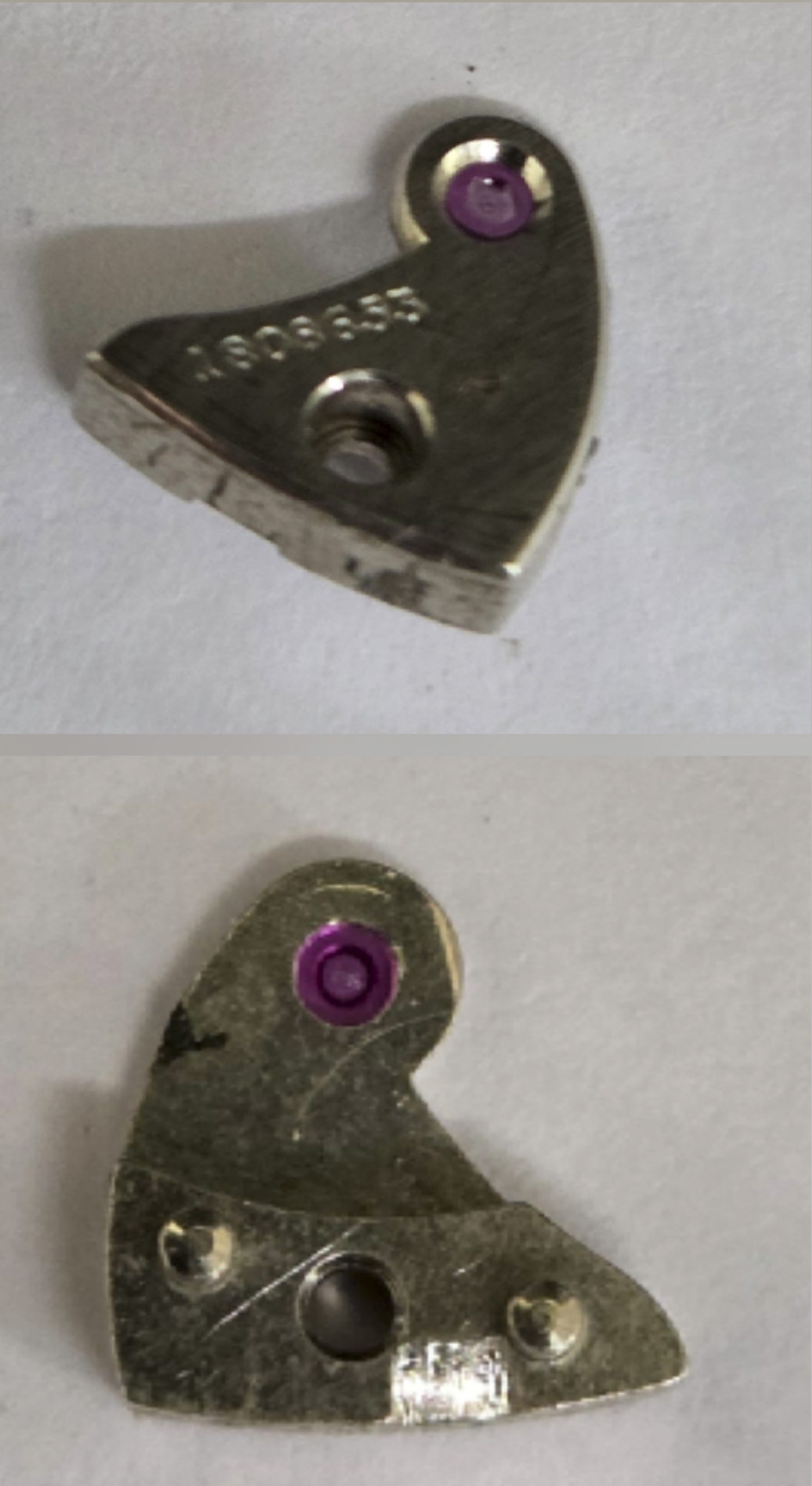

15CHT 117 Escape Wheel Bridge Serial 1808653
15CHT 8000 Chronograph runner mounted Broken Pinion

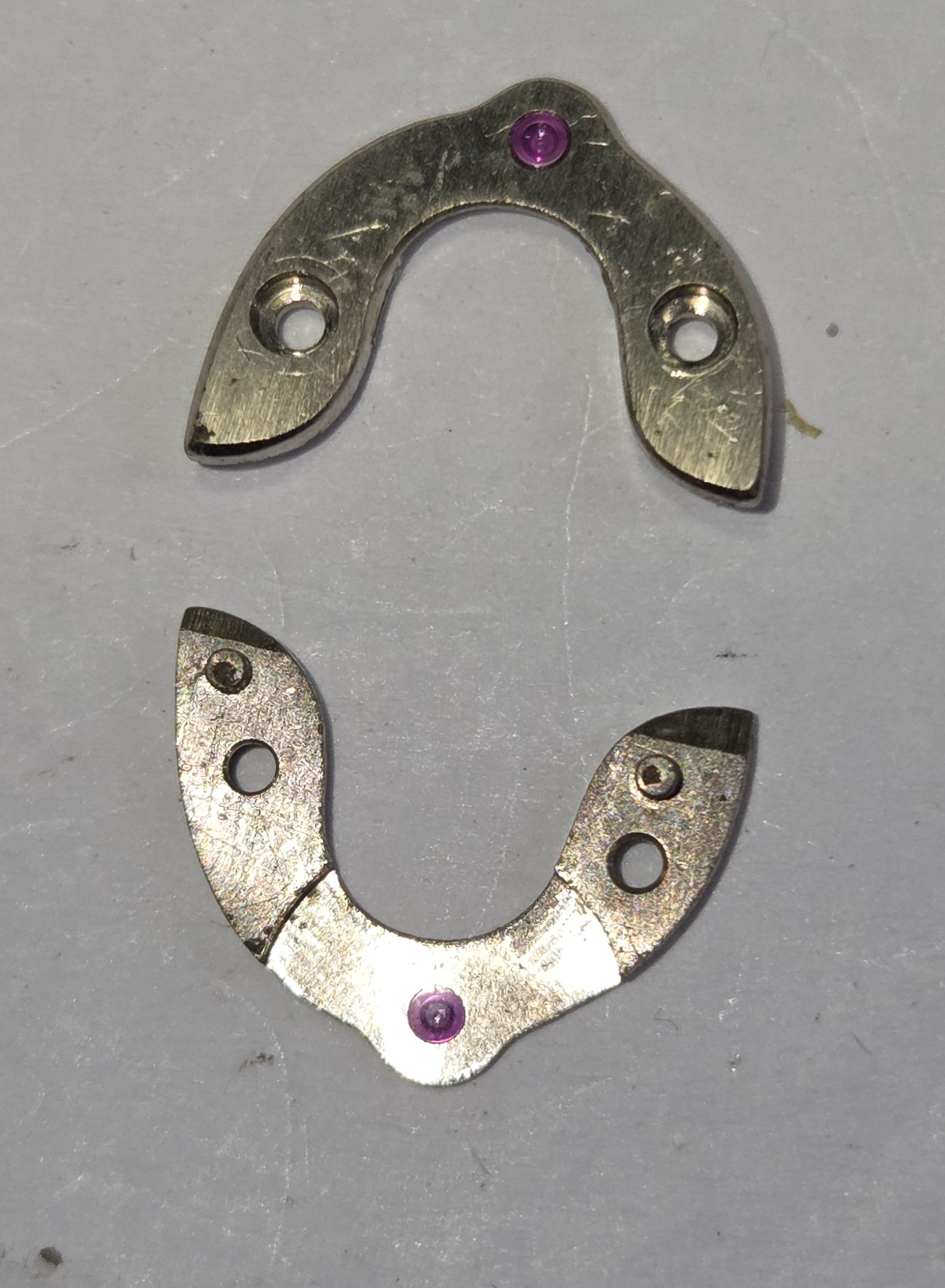

15CHT 125 Pallet Cock
15CHT 8500 Chronograph Bridge Signed Lemania

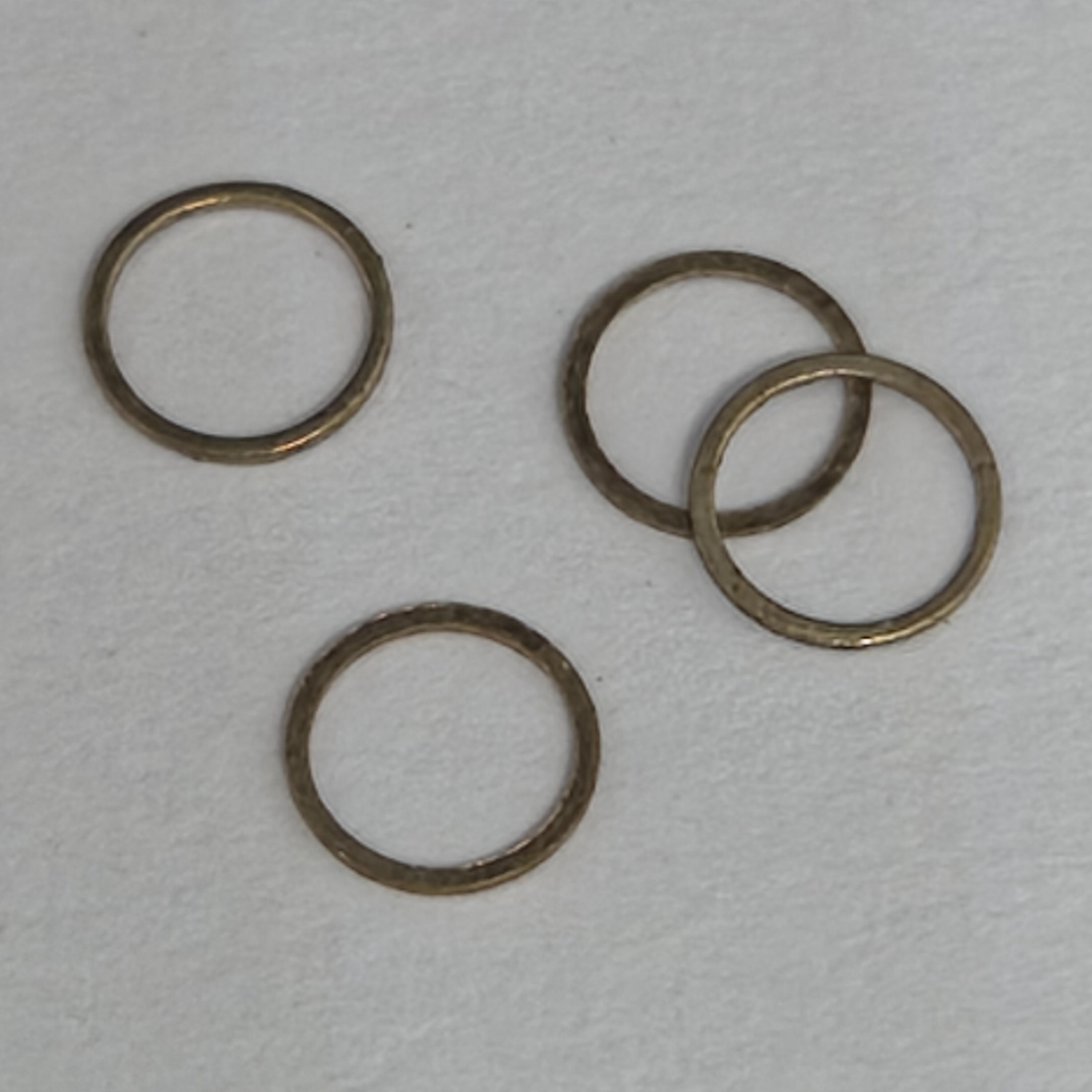

15CHT/15TL Friction/Tension Washer for Pusher See Picture
15CHT 4620 Stainless Steel Crown

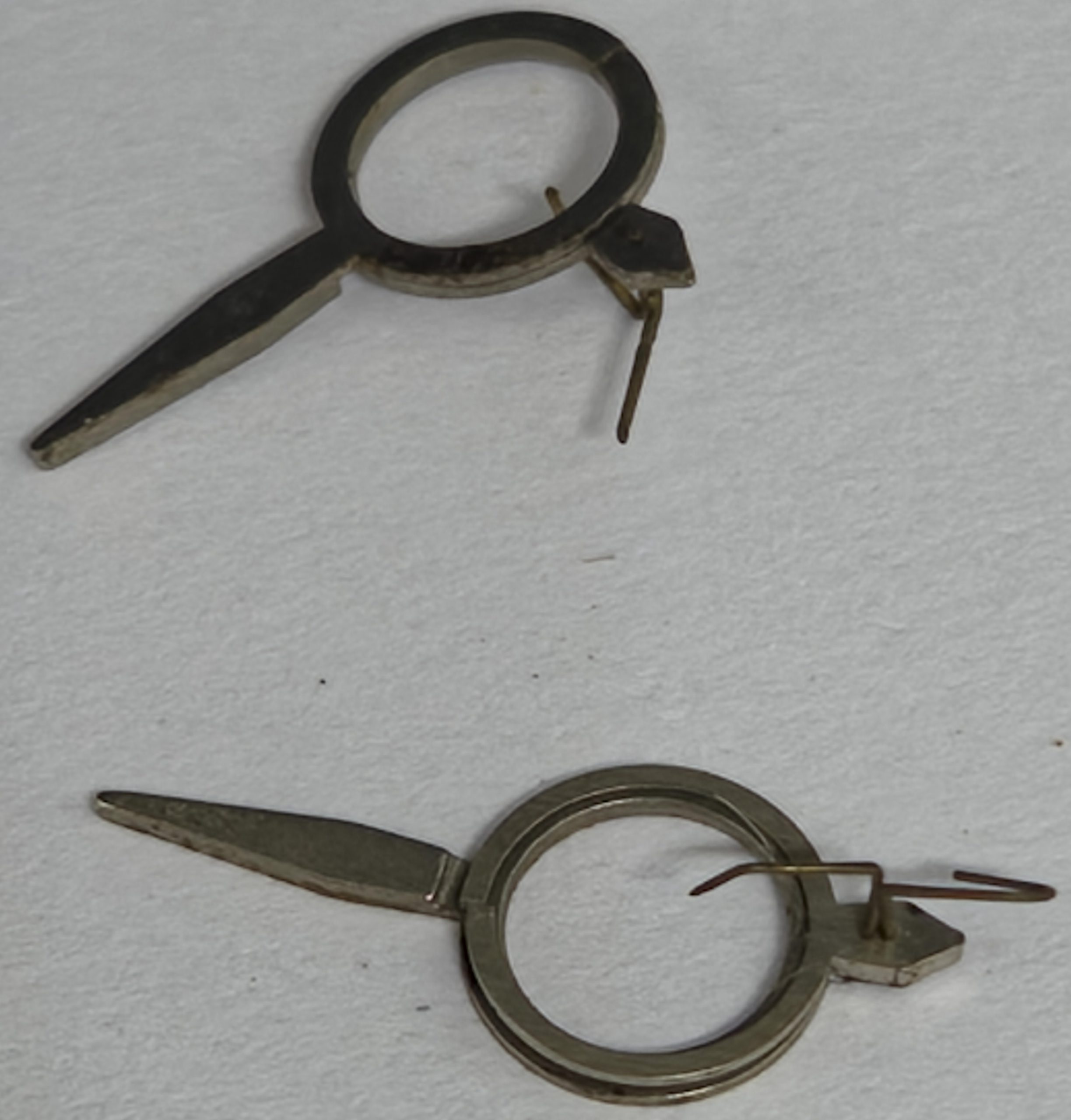

15CHT 4532 2 piece regulator

Additional information

Weight 0.01 kg
Box and Papers

None
Condition

NOS
country_of_origin

CH
Part No

407-Clutch Wheel–{4503}, 415-Rachet Wheel–{4508}, 434-Clicking Spring (Locking Spring)–{4510}, 1111-Yoke, Clutch Lever–{4511}, 443-Setting Lever (Detent)–{4513}, 1109-Setting lever–{4514}, 201-Center Wheel–{4518}, 210-3rd Wheel–{4519}, -Seconds Wheel–{4520}, 260-Minute Wheel –{4522}, 240-Cannon Pinion–{4523}, 710-Jewelled Pallet Fork And Staff–{4526}, 714-Pallet Staff–{4528}, 721-Balance Complete–{4539}, -Hairspring–{4540}, -See picture–{4542}, -See picture–{4543}, -See picture–{4544}, -Pillar Wheel–{4545}, -See picture–{4548}, 8219-Hammer–{4549}, -See picture–{4550}, -See picture–{4551}, 8290-Friction Spring for Chronograph Runner–{4552}, 8002-Seconds Counter Wheel–{4556}, -Minute Counter Wheel–{4558}, 8060-driving wheel–{4559}, -Pinion Relay Chronograph wheel–{4560}, 5443-Screw: Setting Lever (Detent)–{4571}, 58070-Screw:Pillar Wheel –{4581}, -Pusher Return Spring Screw–{5149}, 954-Pusher Stem–{5150}, 8290-Friction Spring for Chronograph Runner–{4552bis}, 121-Balance Bridge, 117-Escape Wheel Bridge, 8000-Chronograph runner mounted-Broken Pinion, 125-Pallet Cock, 8500-Chronograph Bridge-Signed Lemania, Friction/Tension Washer for Pusher, 4532-2 piece regulator–{4532}
